HDPE PIPE

Date:
2019-05-20 17:29:37
ViewCount:
2791次

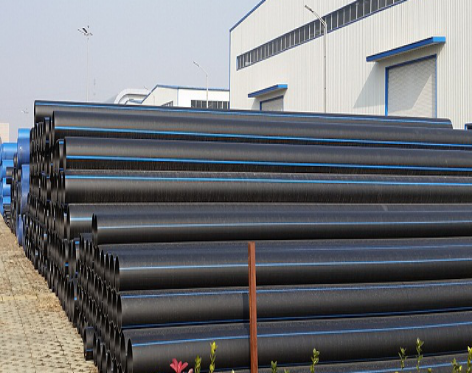

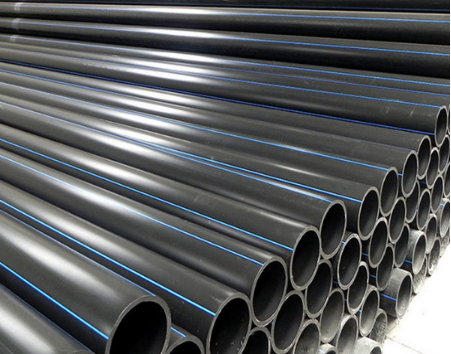

Introduce of HDPE PIPE

HDPE PIPE (High-density polyethylene pipe) is made from high density polyethylene as the main raw material, adding a small amount of antioxidants, Anti-UV absorbers and pigments.

Features:
1.Material: high quality PE 100
2.Diameter Nominal : 16mm to 1400mm
3 Pressure:0.6-1.6Mpa

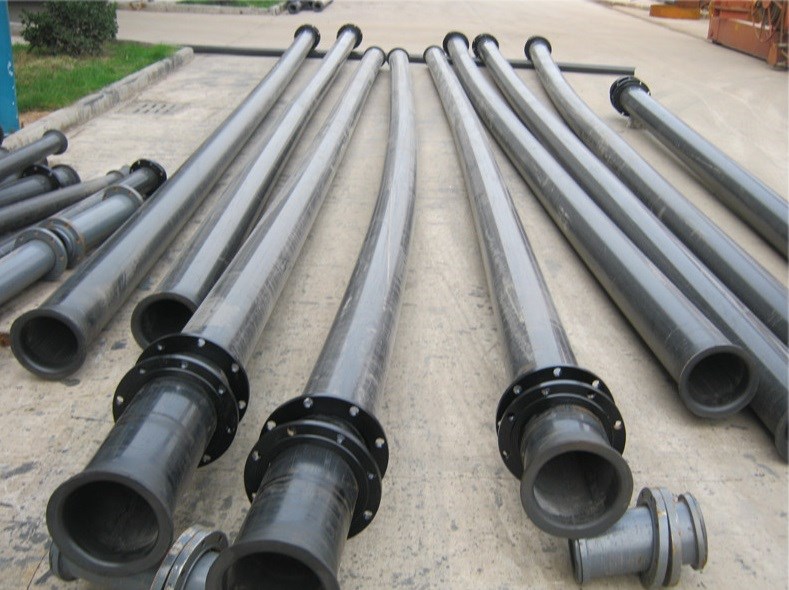

4.Connection: socket fusion, butt fusion joint, electro fusion joint, flanged joint
5.Applications: Water supply, industrial liquids transportation and sewage treatment
Properties:
1.Specific Gravity, g/cm3, 20(C): 0.941-0.965
2.Longitudinal Reversion, % (110(C)): <=3
3.Oxidation Induciton Time, min (200(C)): >=20
4.Extension Rate at Break. %: >=350
5.Hydraulic Pressure Test:
1)20(C), Hoop Stress is 12.4 Mpa, 100h: No Failure.
2)80(C), Hoop Stress is 5.5Mpa, 165h: No Failure.
3)80(C), Hoop Stress is 5.0Mpa, 1000h: No Failure.

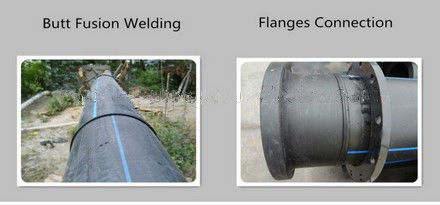

Connection:
ISO4427-1996 ISO14001 IS09001 Standard and PE Material hdpe pipe for water supply

Advantages:
1.Non-toxic: No heavy metal additives would not be covered with dirt or contaminated by bacterium.
2.Corrosion Resistant: Resist chemical matters or electron chemical corrosion
3.Lower installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system.
4.Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipe
5.Longevity: More than 50 years under proper use
6.Recycled and Environment-friendly
Applications:
1.Municipal water supply
2.Commercial & Residential water supply
3.Industrial liquids transportation
4.Sewage treatment

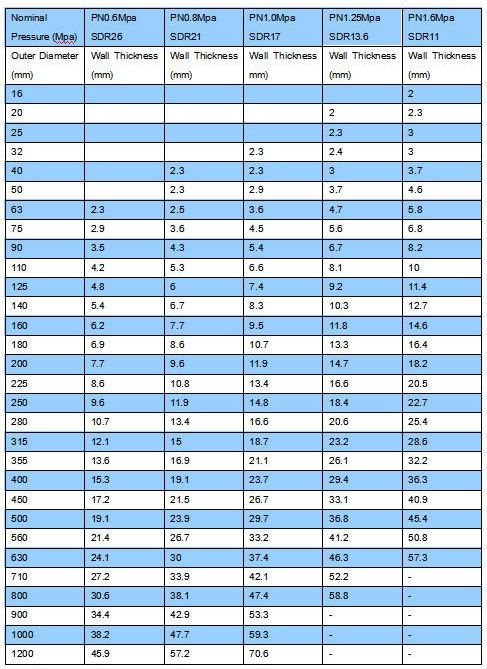

Specification:
ISO4427-1996 ISO14001 IS09001 Standard and PE Material hdpe pipe for water supply

Inspection:
All kinds of products are regularly conducted pressure-tight blastingtest,longitudinal shrinkage rate test, quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products totally reach the relevant standards from raw materials to finished products.


Remarks:

QualityWe have our own brand and a wide variety, meeting the domestic and foreign demand
We have our professional factory,can comstumize according to your requirements.
Excellent materials and designs are available as competitive price.
OrderAny orders from our God will be welcomed.
ShippingEXW,if you want to ship by others way,pls feel free to tell us. FOB or CIF ,we have a nominated professional freight forwarder,a affordable shipping scheme will be designed for you.
PackageHdpe pipe fittings:Plastic woven bag or upon your request.
Hdpe pipe:Plastic woven bag and plastic film or upon your request.
PaymentYou can pay us through T/T,Western union, L/C
Small trial orders and small orders:Full payment should be made before we send out your order.
Big order: 30%T/T deposit,70%T/T upon receiving the shipping pictures and shipping note.
Quality guaranteed

We guarantee high quality and good service will be provided for you.
If you any product interest you pls feel free to Contact Us.

Free sample will be provided for you .
